Magewell Ultra Encode AIO
Dostępność: Zapytaj o dostępność
Koszt wysyłki: od 20 zł
Kod producenta: 53130
Stan produktu: Nowy
Gwarancja: Gwarancja 24 miesiące
- Opis produktu
- Magewell
- Linki (1)

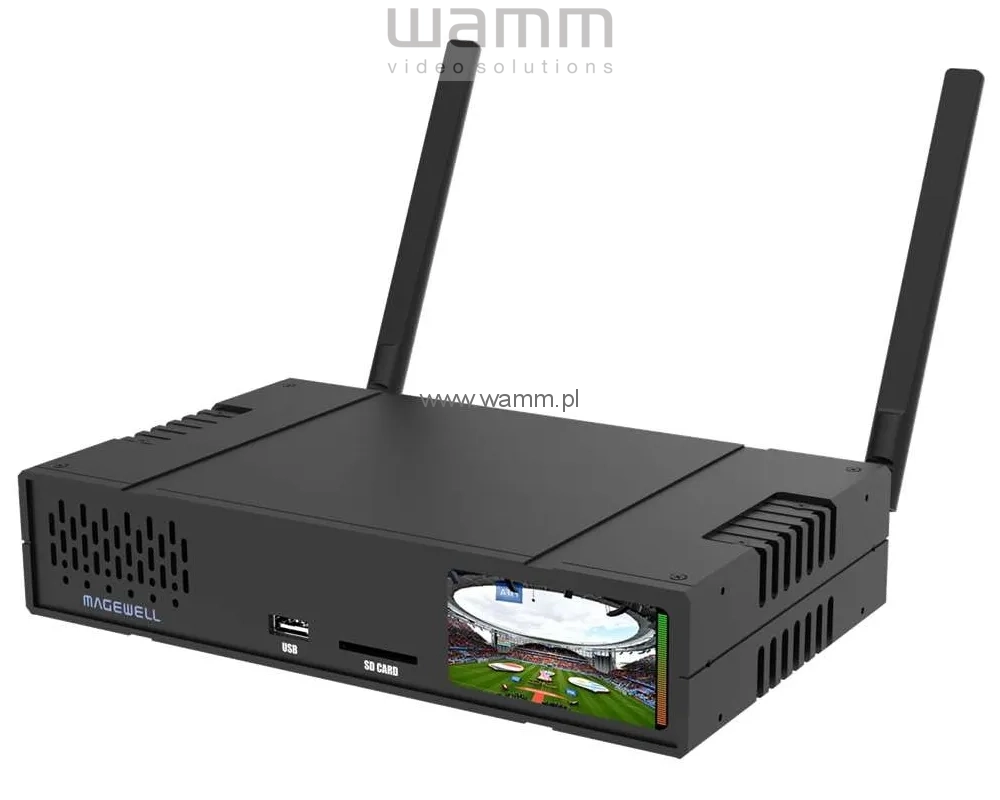

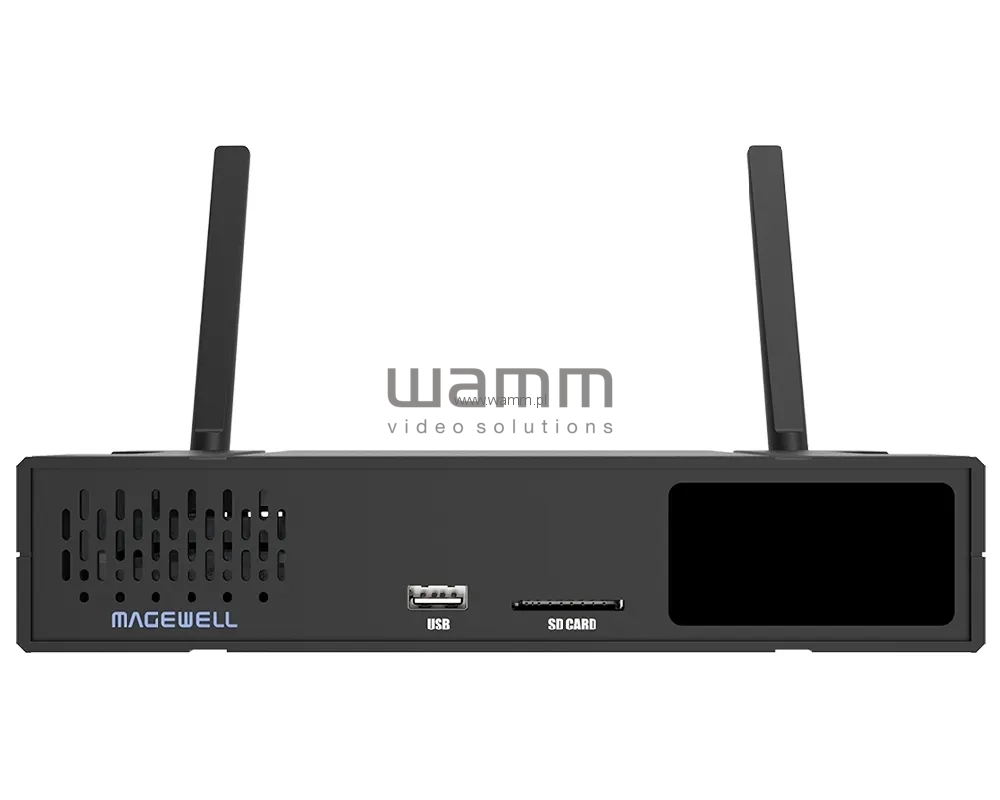

The Magewell Ultra Encode AIO is an Advanced encoder for Streaming and Recording. This encoder is able to encode and stream one live HDMI 4K 30fps input or Full HD 3G-SDI 60fps input. The picture-in-picture and other overlay options allow users to merge both HDMI and SDI inputs for a combined output.
This powerful encoder offers sumltaneous multi-protocol streaming up to eight channels at a bitrate of 32Mbps per stream. Users can choose from a wide variety of formats such as, H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3. Delivery protocols include RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology.
- Mixes video from the HDMI and SDI inputs
- (picture-in-picture or side-by-side) into a combined output.
- Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session.
- Variable bitrate control (VBR) - set different bit rates to different streams
- High-efficiency, low-bandwidth NDI®|HX 3 supported.
- Supports streaming and recording schedule.
- Rack-mountable form factor.

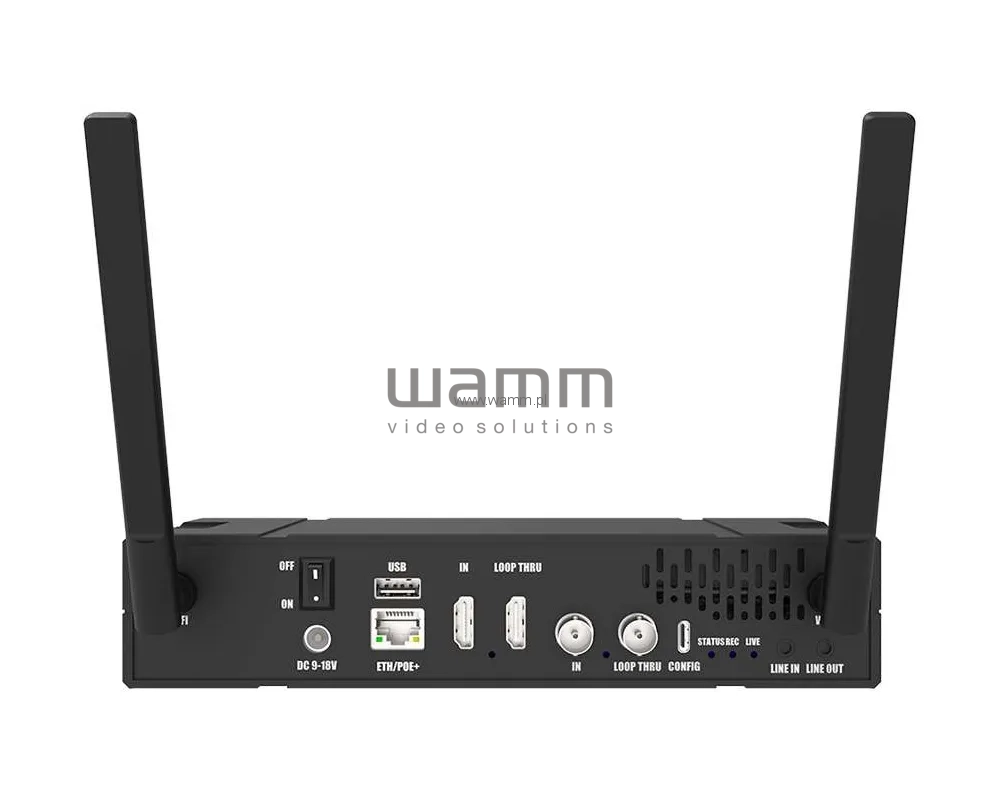

The Ultra Encode AIO takes the capabilities of the current Magewell ultra encode product line to a whole new level. The single unit AIO encoder offers expanded features such as input connectivity for both HDMI and SDI. Encode and stream in 4K from the HDMI input or up to 1080p HD at 60 fps from the 3G-SDI input.
Main Features:
- HDMI: Encode and Stream up to 4096x2160 at 30fps
- 3G-SDI: Encode and Stream up to 1080p HD at 60 fps
- Multi-stream: Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session.
- Picture-in-Picture: Encode and stream the HDMI and SDI inputs simultaneously as a combined input by using the picture-in-picture or side-by-side modes.
- Configurable overlays: text, clock, images etc.
Magewell was founded in 2011 as an R&D center and manufacturer of video capture devices. We have been breaking boundaries ever since, expanding our technologies to live streaming, encoding and playout as well as embedded systems for video processing. Our solutions are widely deployed around the world for applications including live streaming, broadcast production, video conferencing, lecture capture, medical imaging, security, machine vision, gaming, virtual reality production and many more.
In addition to empowering end-users, our products are also incorporated into a wide range of third-party solutions on an OEM basis by other industry-leading manufacturers. Our products are available globally through our valued channel partners including distributors, resellers and systems integrators.
