Magewell Pro Capture Mini SDI | Jednokanałowa karta przechwytująca HD

Dostępność: Zapytaj o dostępność

Koszt wysyłki: od 24 zł

Kod producenta: 11130

Stan produktu: Nowy

Gwarancja: Gwarancja 24 miesiące

Cena brutto: 1 270 zł / szt.

Cena netto: 1 032 zł

Cena katalogowa: 1 323 zł

Ilość:

szt.

Dodaj do koszyka

dodaj do schowka

Zapytaj o produkt Specyfikacja PDF

Opis produktu
Tech Specs
Linki (1)

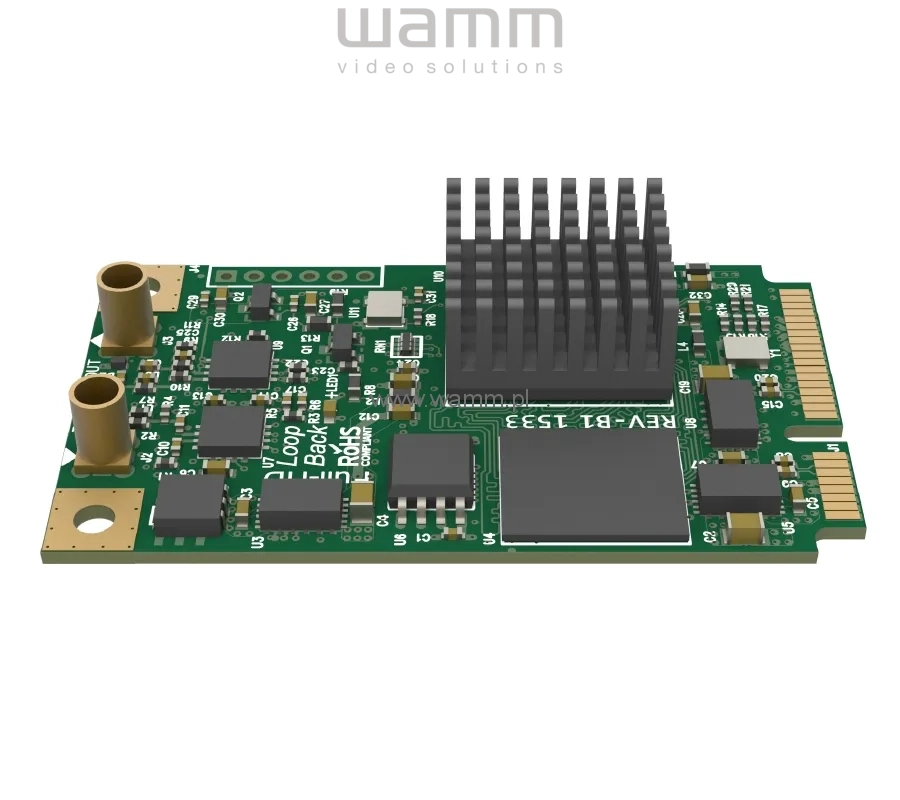

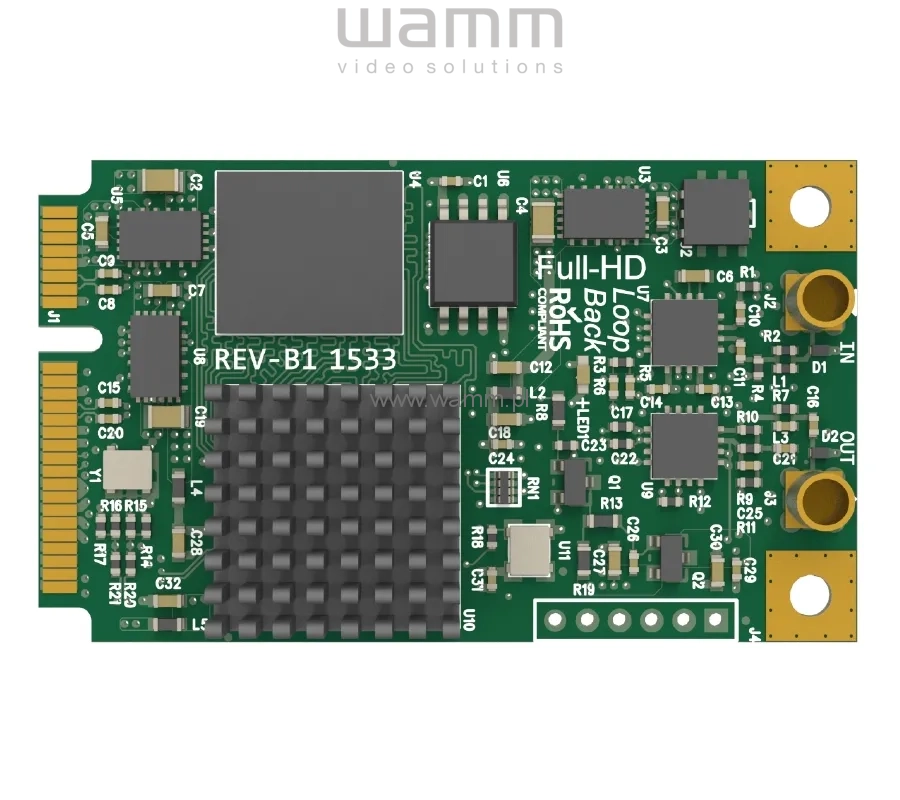

Magewell Pro Capture Mini SDI

Jednokanałowa karta przechwytująca HD

Magewell Pro Capture Mini SDI to doskonałe rozwiązanie dla profesjonalistów, którzy potrzebują kompaktowego, ale wydajnego narzędzia do przechwytywania sygnałów SD/HD/3G/2K SDI z osadzonym dźwiękiem.
Ta jednokanałowa karta HD przechwytuje sygnały SDI do rozdzielczości 1920x1200 pikseli dodatkowo posiada wyjście SD/HD/3G/2K SDI

Strona WWW producenta:

http://www.magewell.com

Supported OS	Windows Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) Linux (support x86, x64 & ARM architecture) Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64) CentOS 6.5/7 (x86 & x64) Fedora 25/26/27 (x86 & x64) Red hat 6.5 and above (x86 & x64) Other Linux OS with kernel version 2.6.35 and above Mac OS X 10.9/10.10/10.11 macOS 10.12/10.13
Recommended OS (tested)	Windows Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) Linux Ubuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64) Mac OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	MMCX SD/HD/3G SDI
Host Interfaces	Mini PCIe Gen2 x1

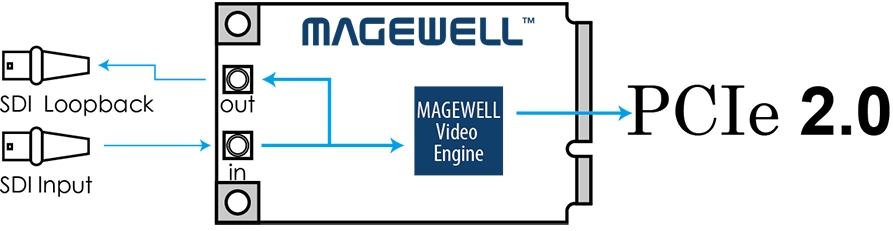

Loop-through Interface	MMCX (SDI loop-through)
Input Features	Support for input video resolutions up to 2048×1080 pixels
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048×1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec) Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-bit: captured as 4:2:2 RGB 4:4:4: R/B sub-sampled
Video Capture Formats	Support for capture image resolutions up to 2048×2160 pixels Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2160) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system
Multiple Capture Streams	Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown when it is not in use Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Mini PCIe Add-on Card 30mm x 51mm
Accessories	2 x MMCX to BNC cables
Power Consumption	High Performance Firmware Max current at 3.3V: ~ 1.1A Max power consumption: ~ 3.62 W Low Power Consumption Firmware Max current at 3.3V: ~ 0.95A Max power consumption: ~ 3.19 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
